SPECIFICATIONS

Battery Type: Lithium battery

Battery charging limit voltage: 4.4V

Battery type: Lithium polymer battery

Brand Name: Heltec Automation

Charge+Discharge: USB-C output (10W) + Wireless charging (5W)

Charging time: About 2.5 hours

Dimensions: 102.00*74.10*10.80 (unit: mm)

E-Ink: 2.13 Inch

Features: Wireless Charge

High-concerned chemical: None

Input Interface: Micro USB

Max Output: 15W

Origin: Mainland China

Output Interface: Wireless Charger

RF chip: nRF52840(BLE), SX1262(LoRa)

Shell Material: Plastic

Shell material: ABS, Tempered glass

Storage temperature: -20℃~55℃

Type: Portable Power Bank

Weight: 140g

Wireless Charging output: 5W, 7.5W, 10W, 15W

Summary

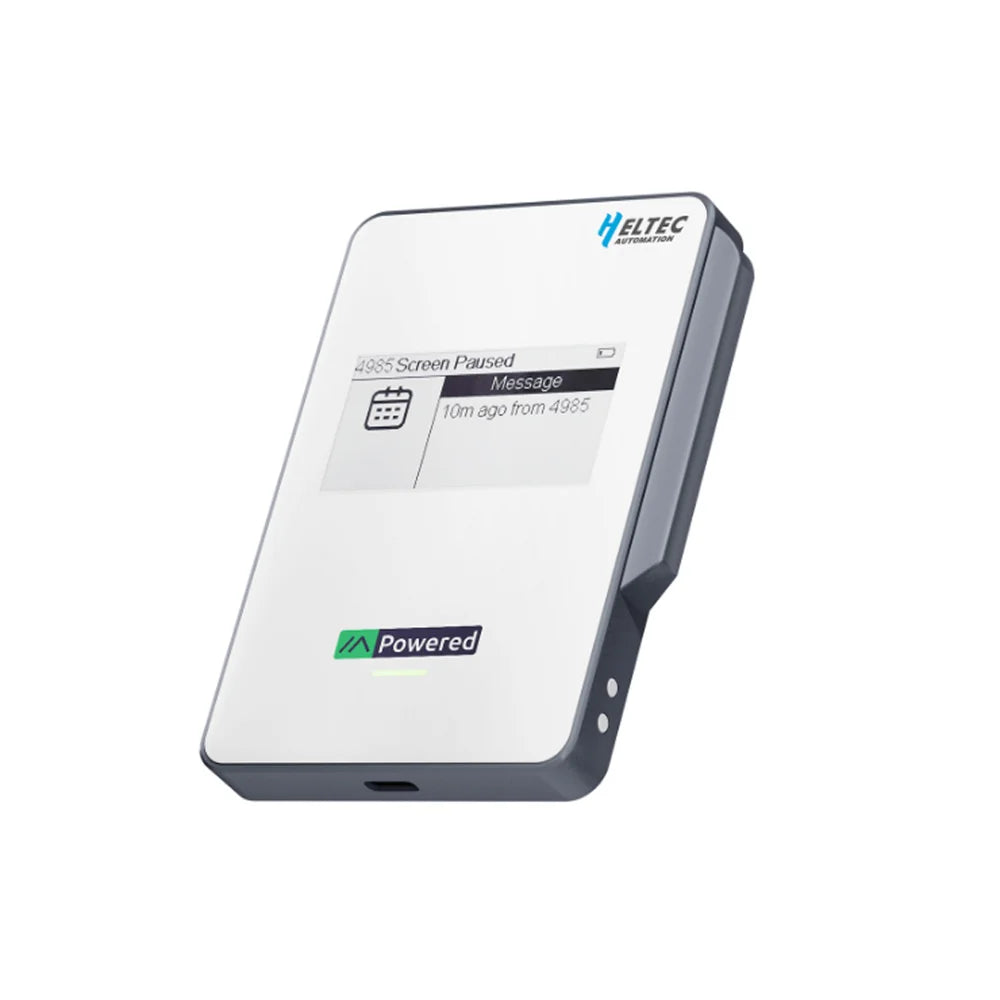

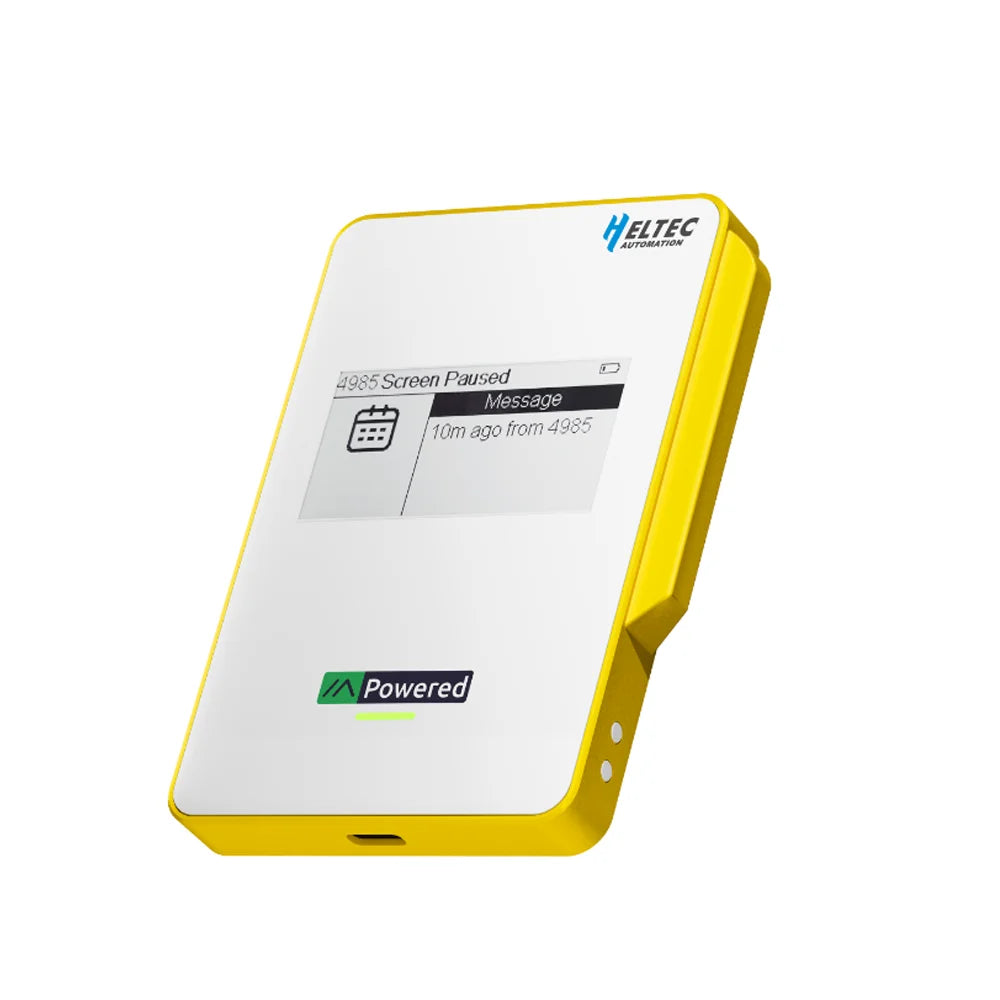

MeshPocket is not only a Qi2 magnetic power bank but also an intelligent device equipped with Bluetooth, LoRa

remote communication, ande-ink display, making it the perfect companion for open source projects such as

Meshtastic and providing a good solution for outdoor exploration and emergency communication.

MeshPocketis a device that brings Meshtastic into your daily life.

Main Features

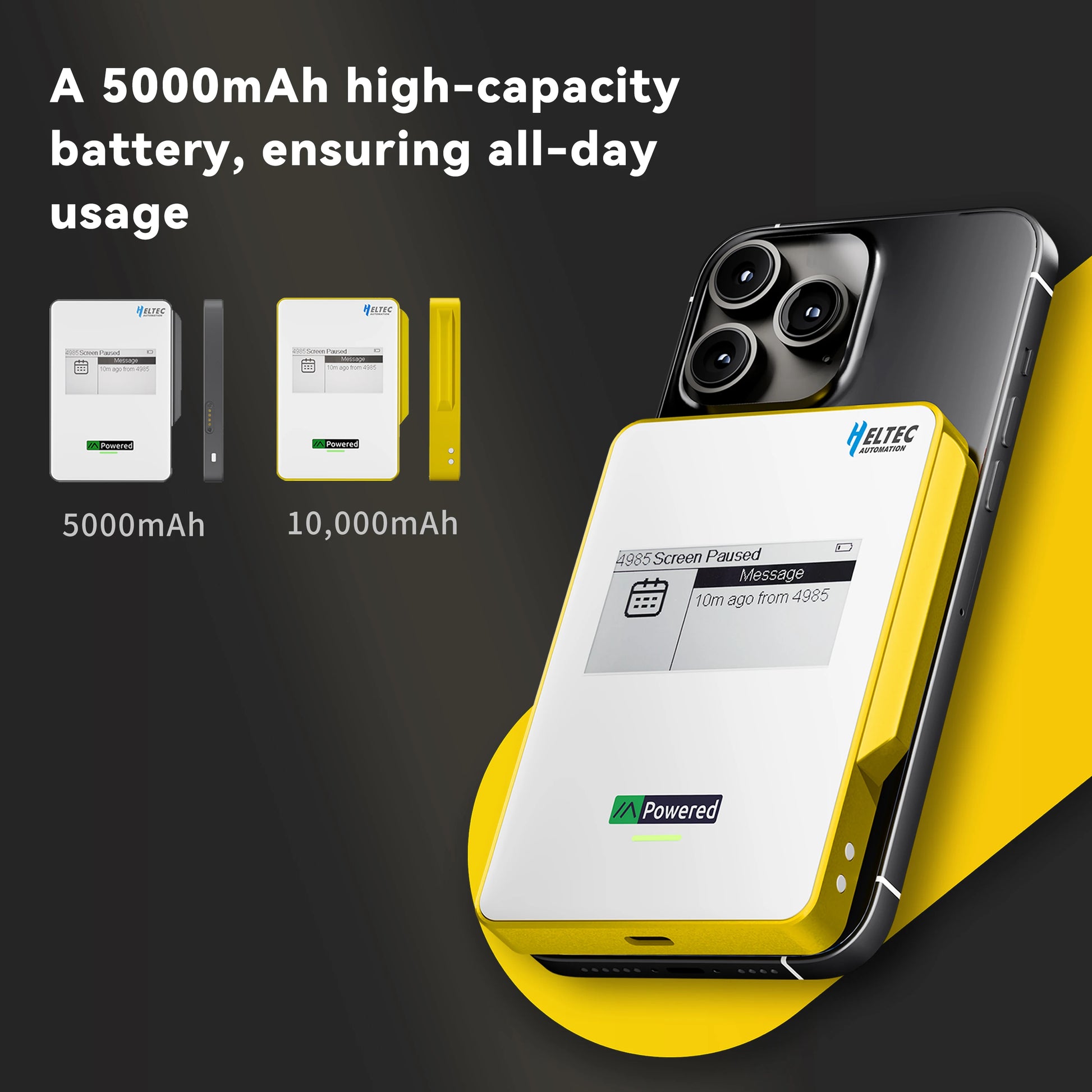

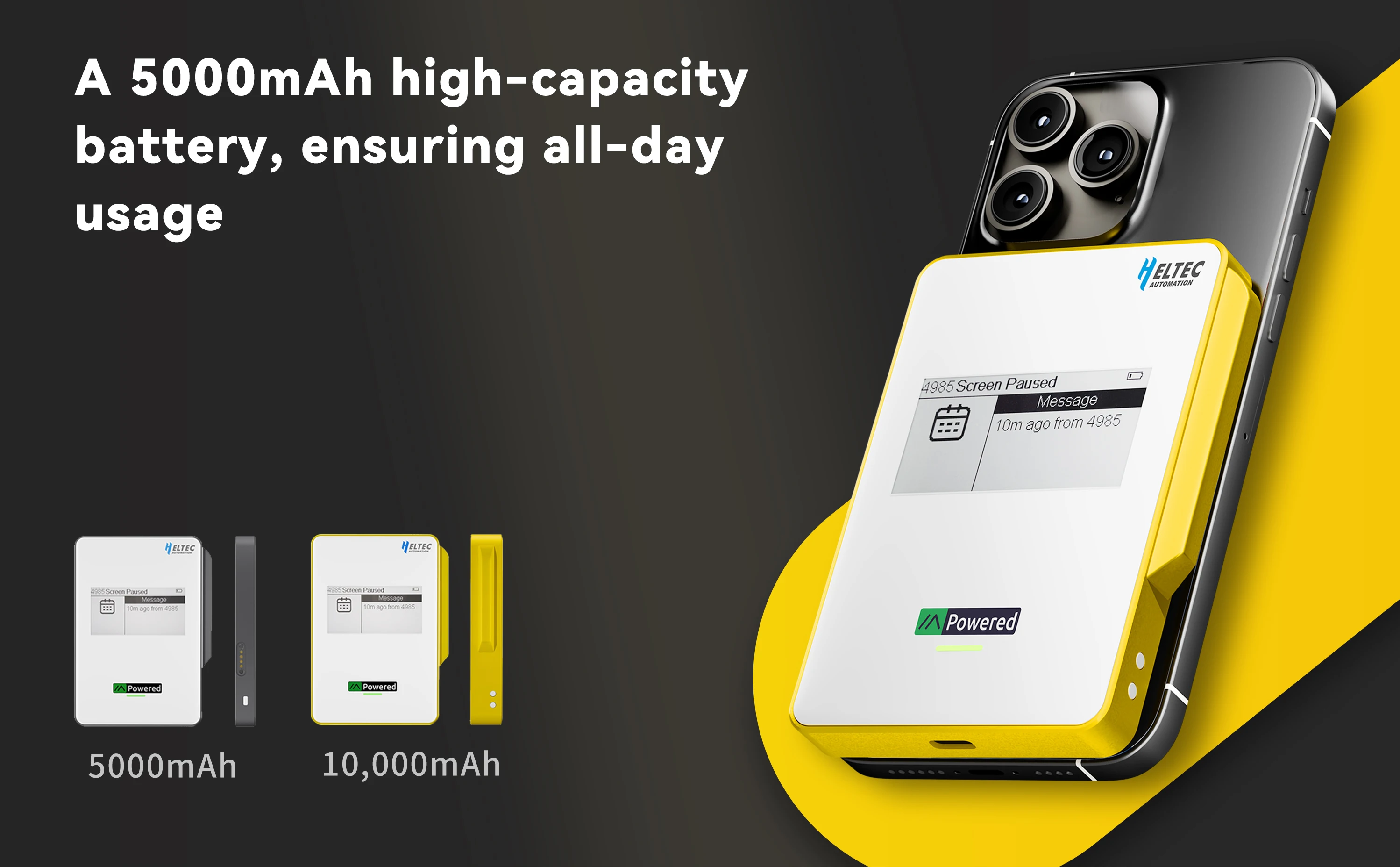

• 5000mAh/10000mAh battery capacity.

• QI2 compatibility.

• Supports 5W, 7.5W, 10W, and 15W wireless charging .

• Supports 9V-2.22A and 5V-3A USB-C input and output protocols.

• Supports industry-standard protocols like PD, AFC, and Huawei adapter protocols.

• Allows simultaneous charging and discharging.

• Enables both wireless and wired discharging at the same time.

• Supports input overvoltage and undervoltage protection, outputovercurrent and short circuit protection, battery undervoltage protection, NTC temperature protection, chip temperature protection, and charging timeout protection.

• Integrates the nRF52840(BLE ) and SX1262(LoRa).

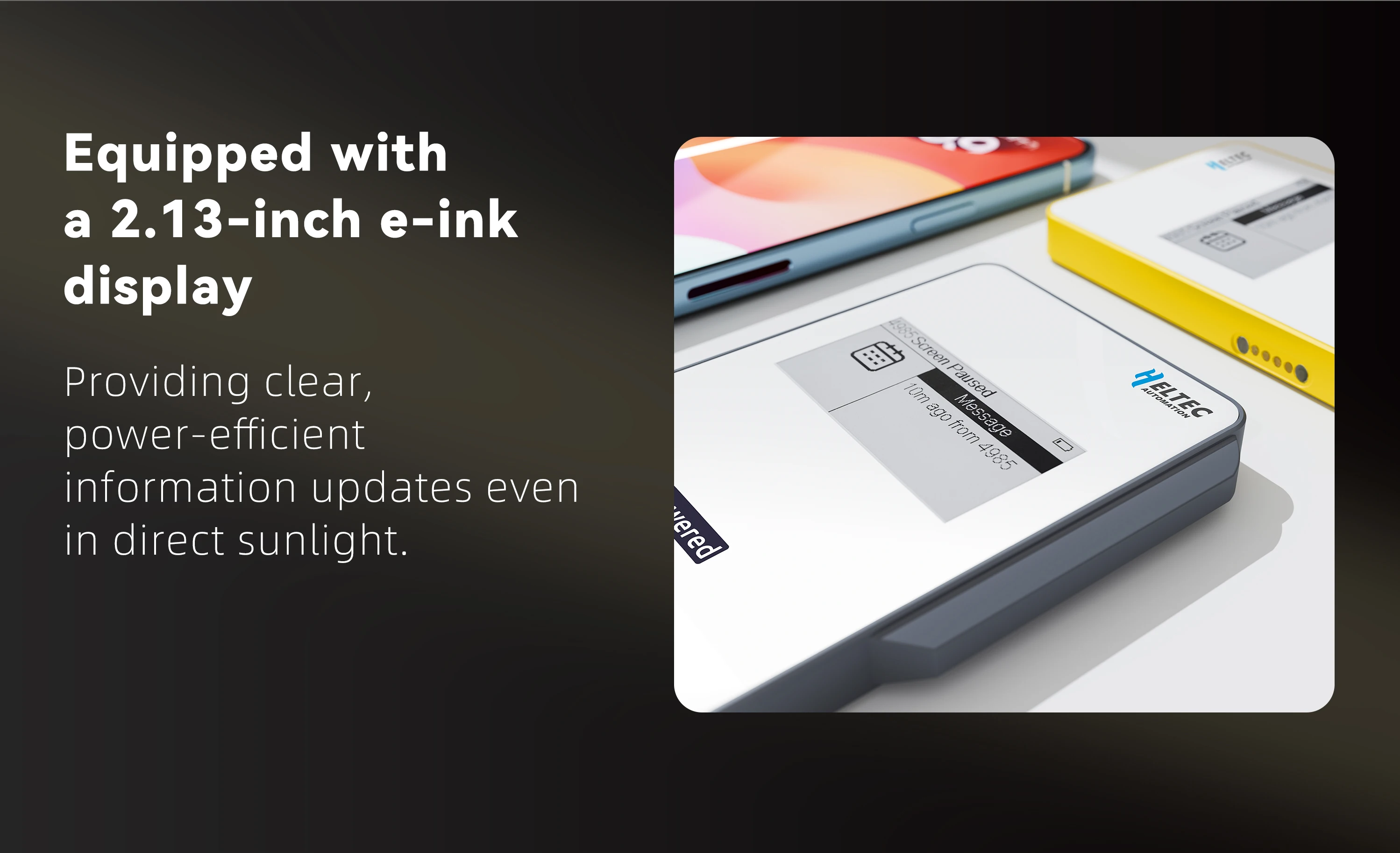

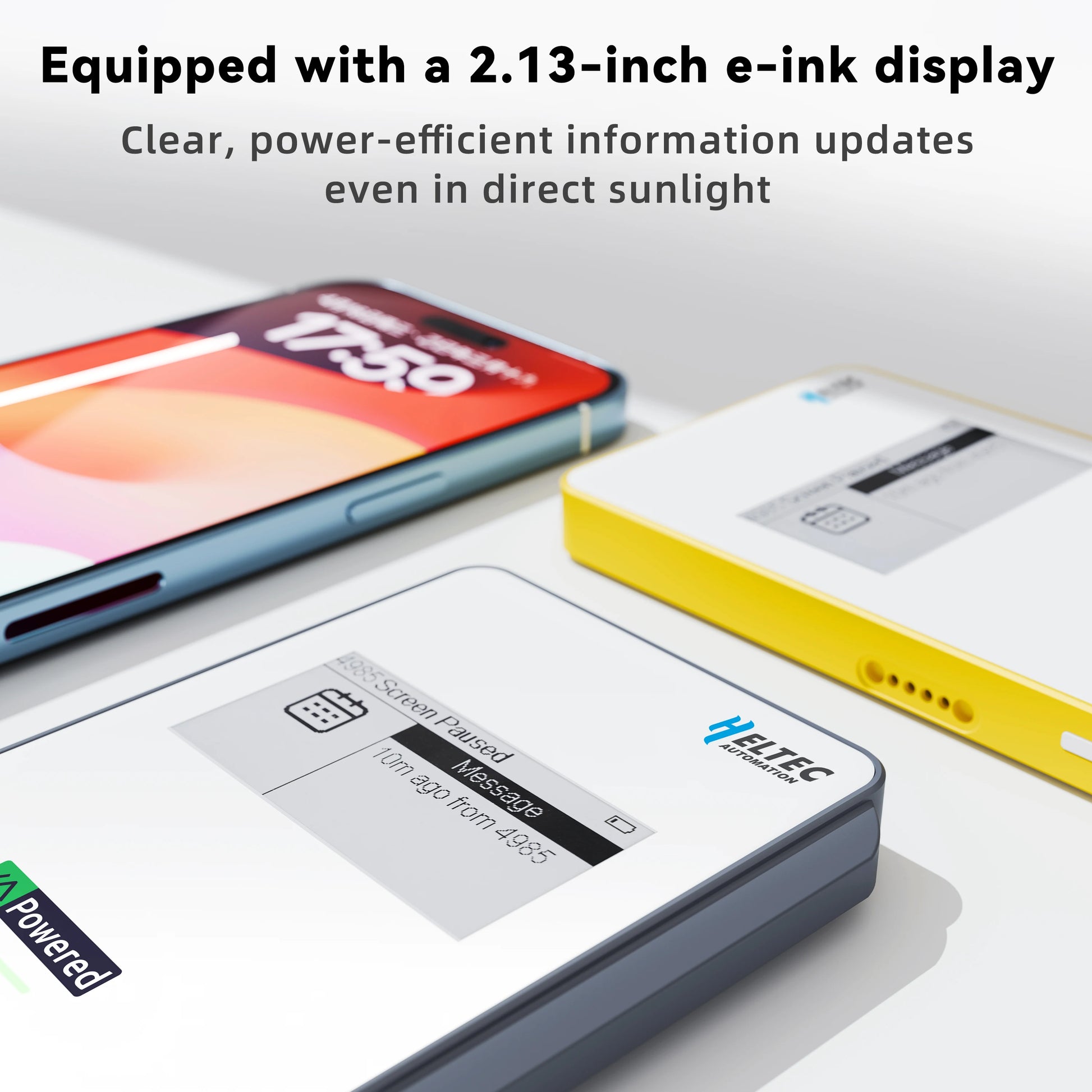

• Equipped with a 2.13-inch e-ink display, providing clear, power-efficient information updates even in direct sunlight.

• Offers full custom firmware support, allowing developers to adapt it for specialized applications.

• Seamlessly compatible with Meshtastic.

Specifications

Description

Components

Dimensions

Charging

           Wireless Charging                           Wired Charging                           Charging Power Bank

High light

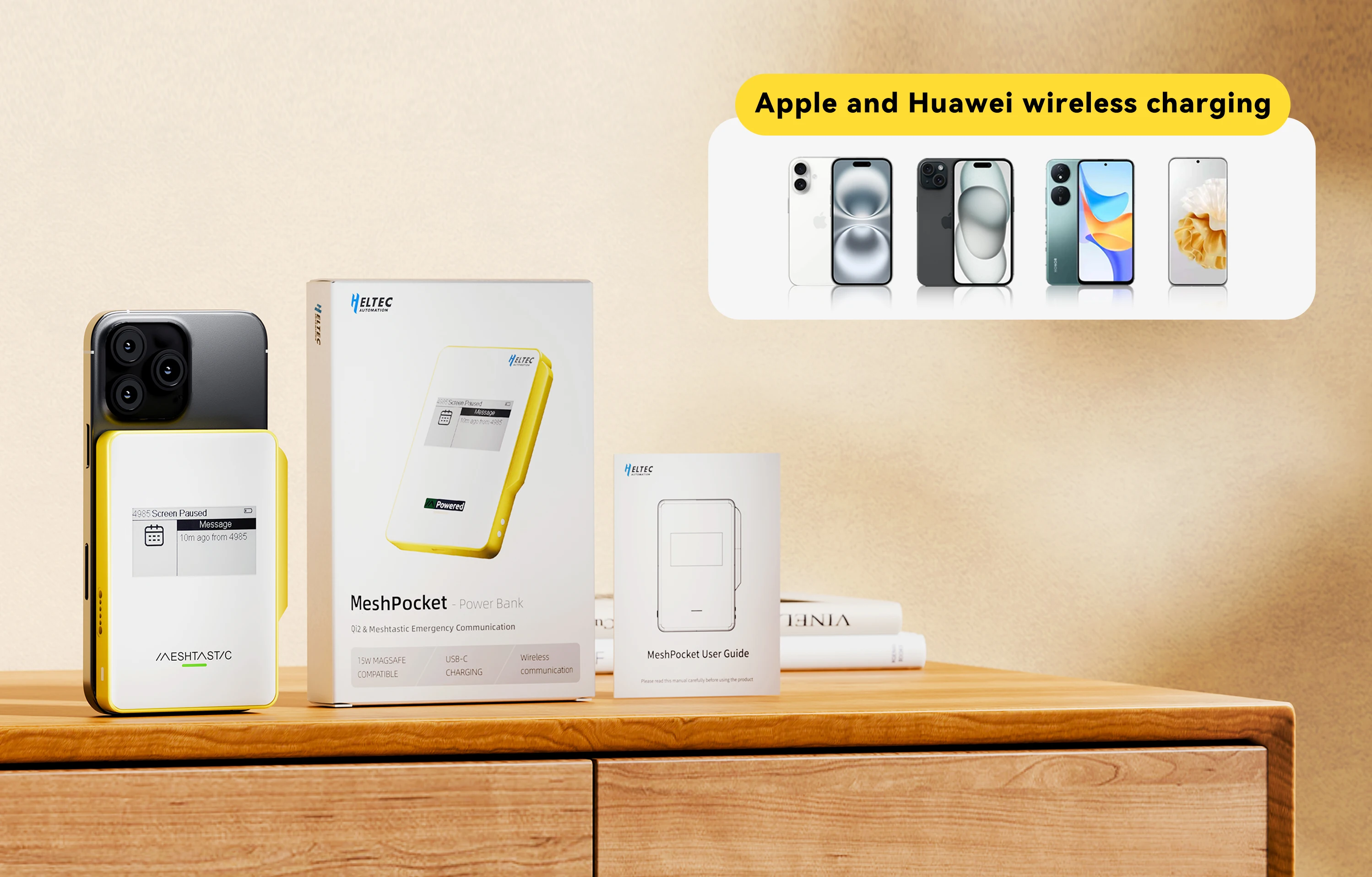

Supports Qi2

• Supports the Qi2 standard, with devices certified by the WPC toensure compatibility and safety.

• Wireless Charging Support5W, 5W, 10W, and 15W.

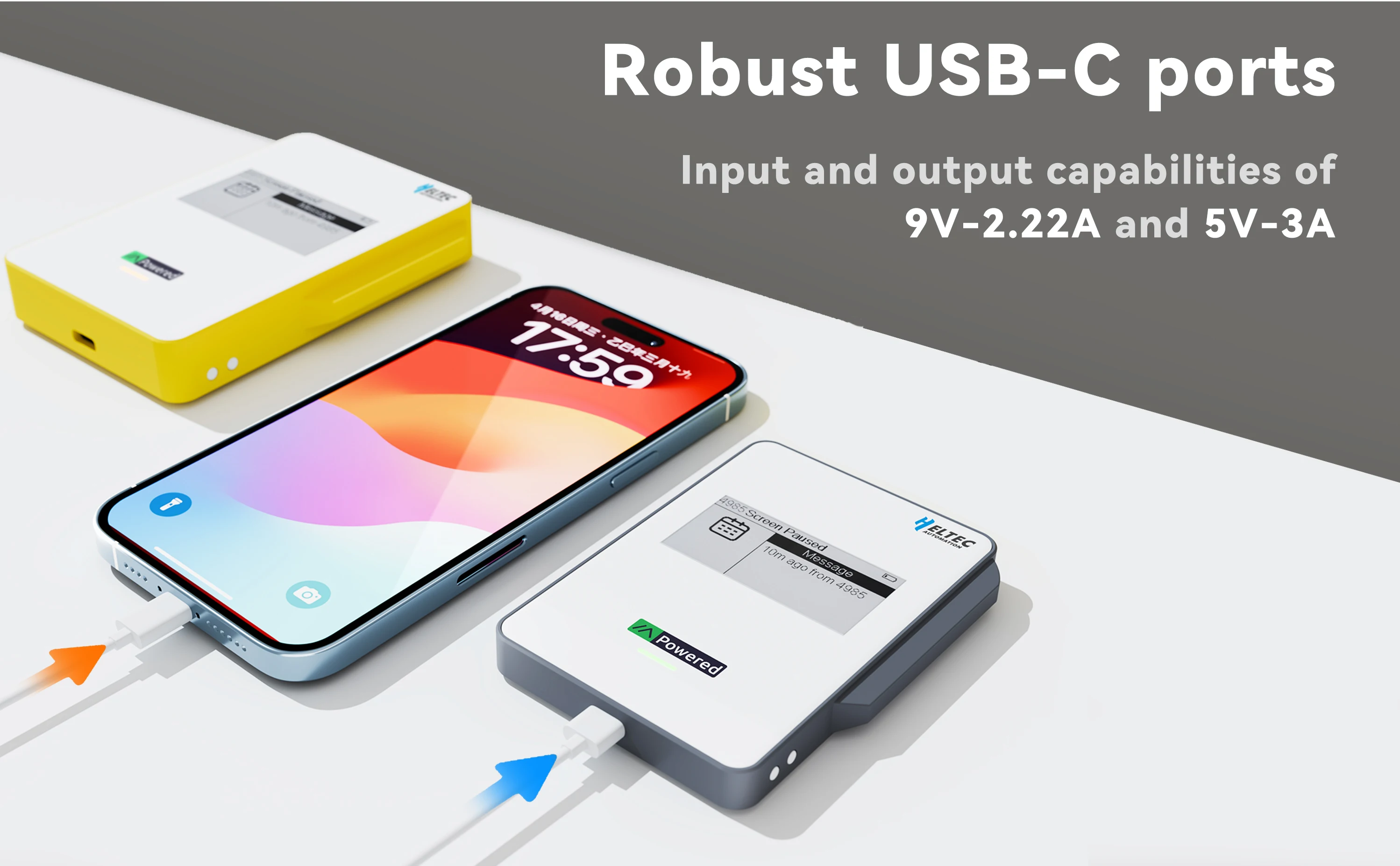

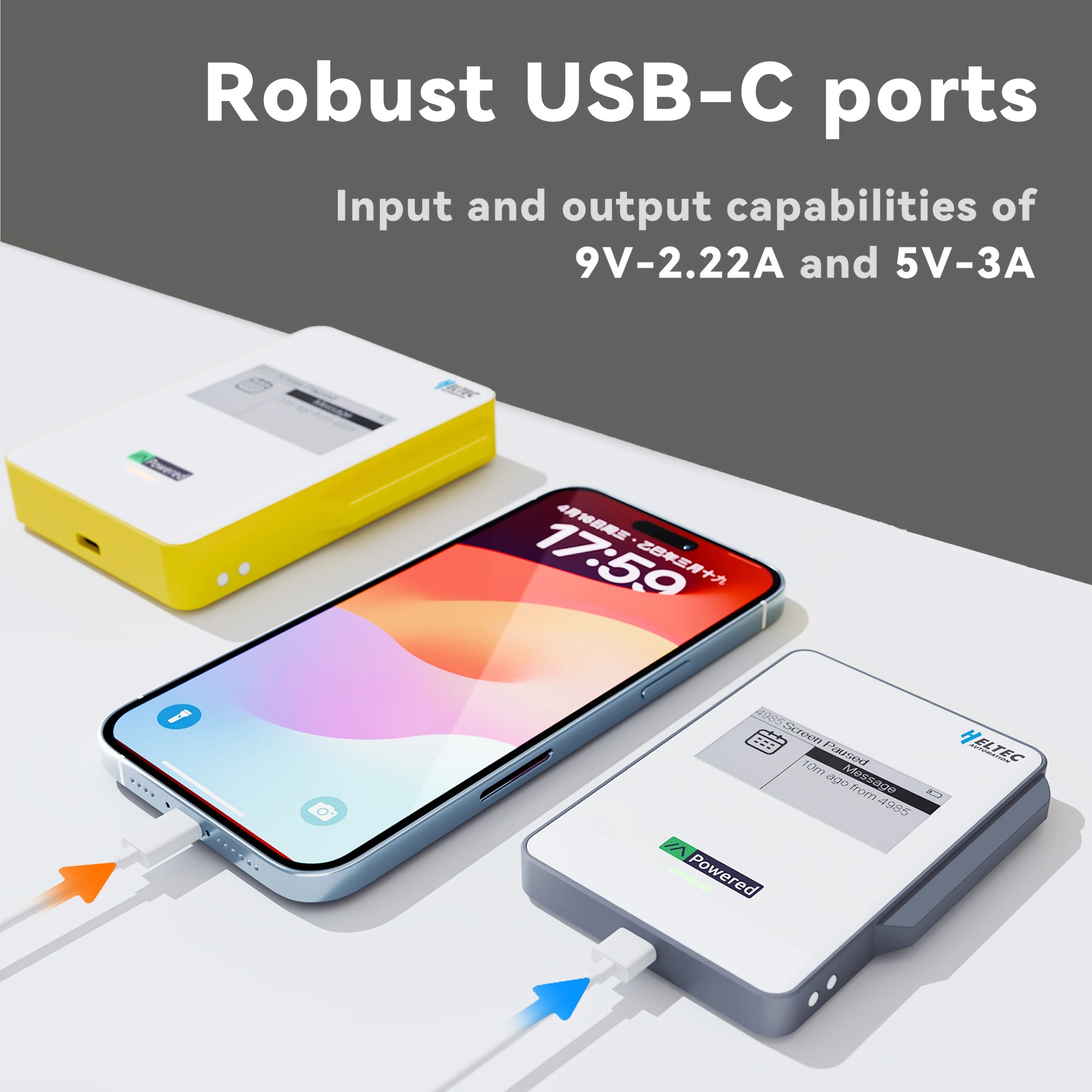

Features robust USB-C

• Supports 9V-2.22A and 5V-3A USB-C input and output protocols.

• Supports industry-standard protocols like PD, AFC, and Huaweiadapter protocols.

Meshtastic compatible

Equipped with the nRF52840 chip and high-performance SX1262LoRa RF chip.Preloaded with Meshtastic firmware and supportsfrmware upgrades via a web interface.

FAQ

1.Can wireless charging and wired charging be used simultaneously?

Yes, when both wired charging and wireless charging are enabled simultaneously, the wired charging will be 10W and the wireless charging will be 5W.

2.My wireless charging is very slow.

Please ensure that your phone’s wireless charging protocol is Qi or Qi2.

3.How to turn OFF Meshtastic?

Press and hold the USER button on the side of the device to disable the Meshtastic feature.

4.Is the device waterproof?

It currently does not have waterproof features.

5.Does it support charging and discharging simultaneously?

Yes. You can charge the MeshPocket via the USB-C port while simultaneously using its wireless charging to charge your phone.

(Current power allocation: Wired charging input 10W, wireless charging output 5W. Total output may be limited by input power capability.)

Precautions

• When the wireless charging output is abnormal or a foreign object (FOD) is detected, the wireless charging indicator light flashes yellow and recovers within 5S after it is released.

• You can manipulate the Meshtastic interface with the buttons on the right side.

• To ensure battery life, please charge it at least once every three months.

• Do not expose this product to high-temperature environments or around heating equipment, such as cars, sunlight, heaters, microwave ovens, ovens and other high-temperature environments, as it may cause an explosion.

• It is strictly prohibited to use unapproved or incompatible power adapters, charging cables, etc., which may cause fire, explosion or other dangers. Please use original or certified data cables.

• Do not leave this product in an unventilated space for a long time, such as a handbag, etc. Confined spaces can easily cause fire and other dangers.

• This product contains lithium-ion batteries. It is strictly prohibited to disassemble the product casing without permission to avoid damage to the battery core or fire hazard.

• Do not drop, squeeze, puncture, short-circuit this product, or put it into water or fire to avoid fire hazards. Please dispose of this product in accordance with local regulations. Do not dispose of this product as domestic waste. Improper disposal may cause explode.

• Please do not use this product during thunderstorms to avoid product failure or click hazards.

• Do not come into contact with liquids and avoid dropping the product. If the product has battery swelling, leakage, deformation, etc., please stop using it.

• Please keep this product out of reach of children.

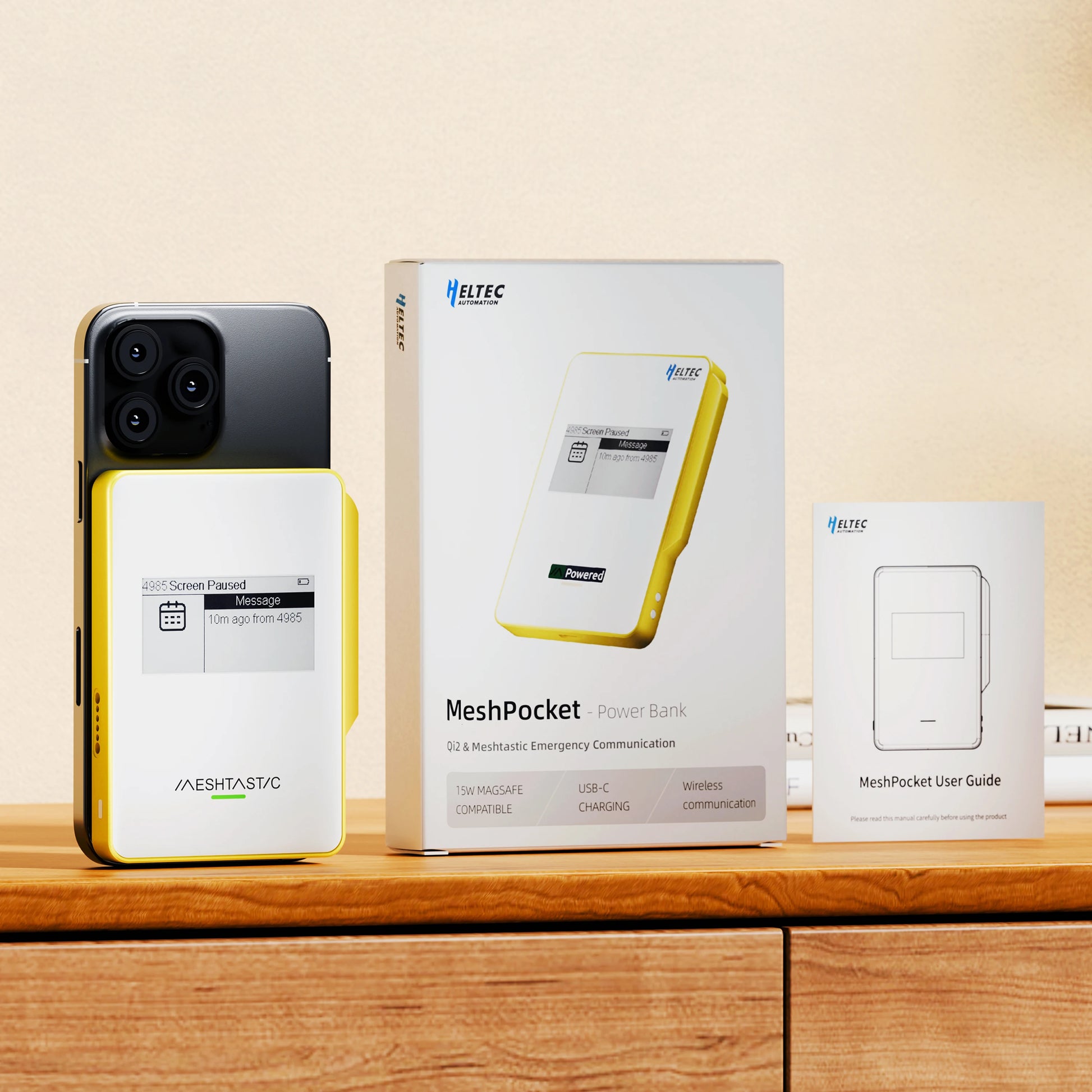

Packing list

The default packing list without selecting any accessories is as follows:
